Calcium Silicate Board vs Gypsum Board: Which One Should You Use?

Introduction

When choosing wall or ceiling panels, especially for home renovations or interior construction, you’ll likely come across two popular options: calcium silicate board and gypsum board. Though they may look similar, they perform very differently in terms of water resistance, fire safety, durability, and cost. This extended guide offers a clear, side-by-side comparison to help homeowners and builders make the right choice.

Exploring Core Differences: Raw Materials and Forming Processes

The performance differences between calcium silicate boards and gypsum boards stem from their distinct raw material formulations and manufacturing processes:

Calcium Silicate Board:

  • Core Composition: Selected cement, high-purity lime, and siliceous materials (such as refined quartz sand or high-quality fly ash).
  • Advanced Manufacturing Process: Components undergo full chemical reactions in a high-temperature, high-pressure autoclaved environment, ultimately forming a strong and stable tobermorite crystal structure. This process endows the board with excellent physical properties.
  • Performance Characteristics: The finished product has stone-like high strength, extremely low shrinkage, exceptional dimensional stability, and high density, making it perform exceptionally well in harsh environments.

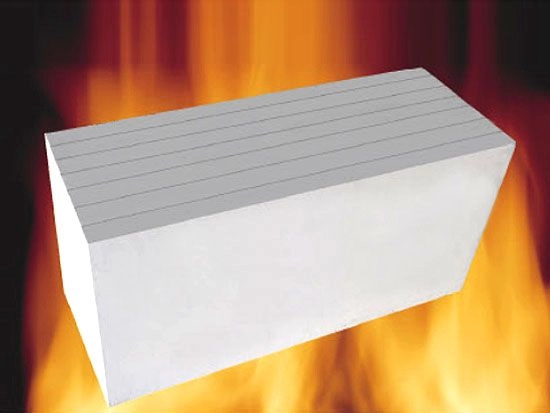

Fireproof calcium silicate board product characteristics

Gypsum Board:

  • Core Composition: Based primarily on calcined gypsum (hemihydrate gypsum).
  • Typical Manufacturing Process: Gypsum powder undergoes rehydration with water to harden and form at room temperature and pressure. Special paper or glass fiber cloth is usually used for surface reinforcement.
  • Performance Characteristics: Relatively lightweight, flexible, and easy to cut and shape on-site, but the core gypsum material is sensitive to moisture, which is a natural limitation in its application.

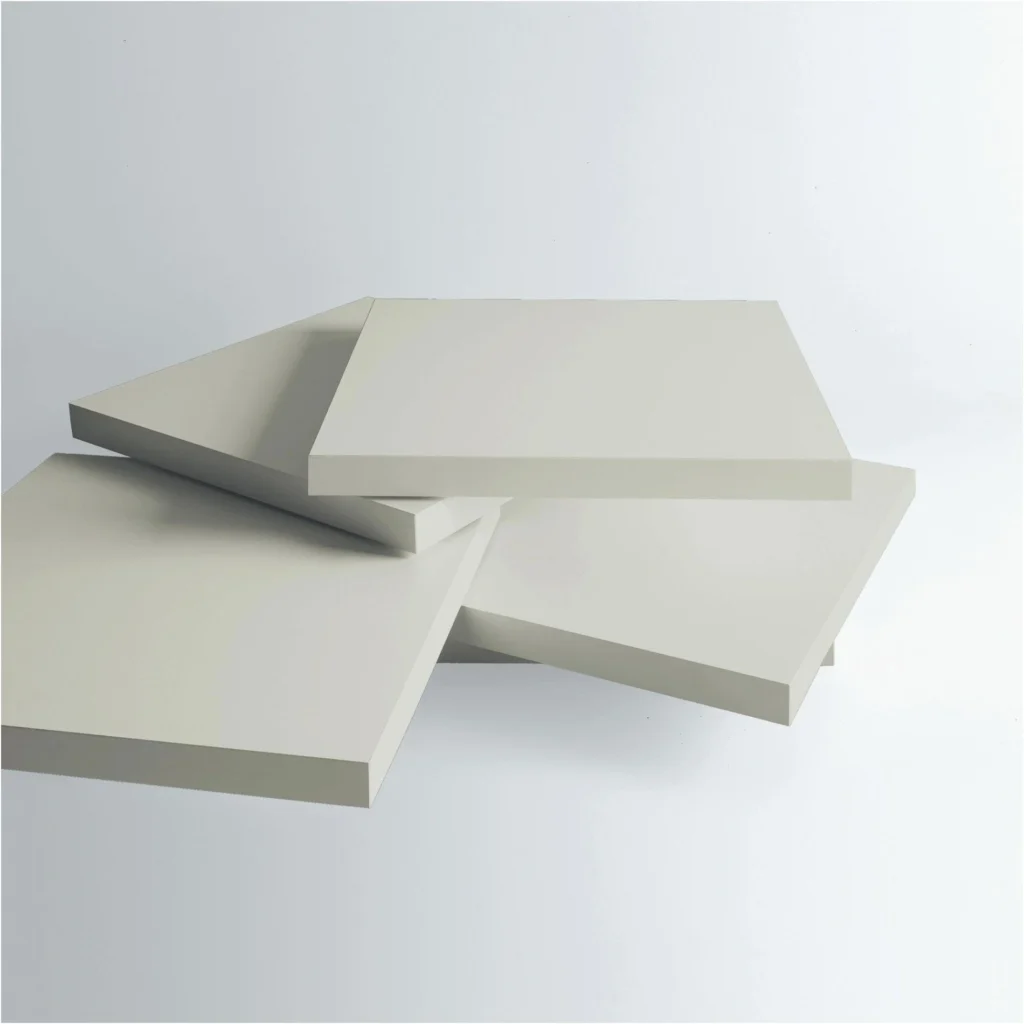

Close-up of bubbles visible in gypsum board products

Material performance standards: ASTM International – Gypsum Board Specs

Performance Comparison

Here’s how the two materials compare in key areas:

– Moisture Resistance: Calcium Silicate excels in wet areas like bathrooms and basements. Gypsum board, unless water-resistant, can weaken or crumble.
– Fire Safety: Calcium silicate meets A1 fire resistance standards and won’t burn or produce toxic fumes. Gypsum board offers only basic fire protection unless layered or treated.
– Strength: Calcium silicate is impact-resistant and highly stable. Gypsum is softer and depends on support frames.
– Lifespan: Silicate boards last over 20 years with minimal upkeep. Gypsum boards can degrade in harsh environments.
– Installation: Gypsum is easier to cut and install. Silicate needs tools and trained labor.
– Cost: Gypsum board is cheaper upfront. Silicate has a higher cost but pays off in long-term savings.

Fire Resistance and Moisture Protection Explained

Calcium Silicate Board is designed to resist extreme conditions. Even after long exposure to water or fire, it remains intact and stable. Its structure prevents swelling, warping, or crumbling—making it a reliable solution for critical areas.

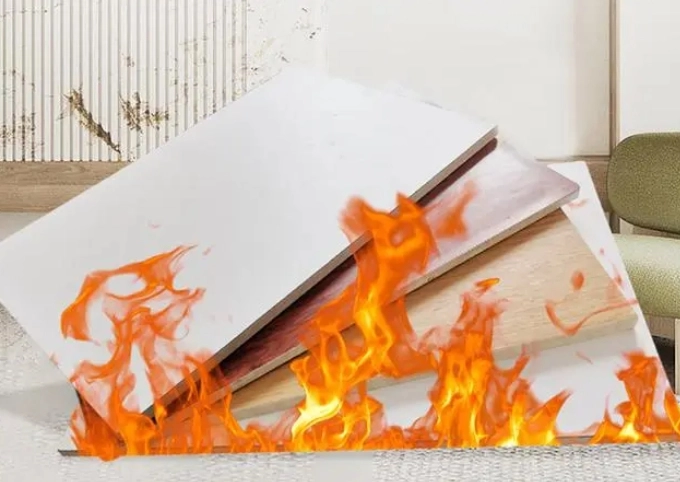

Professional fireproof calcium silicate board is non-combustible and flame-retardant.

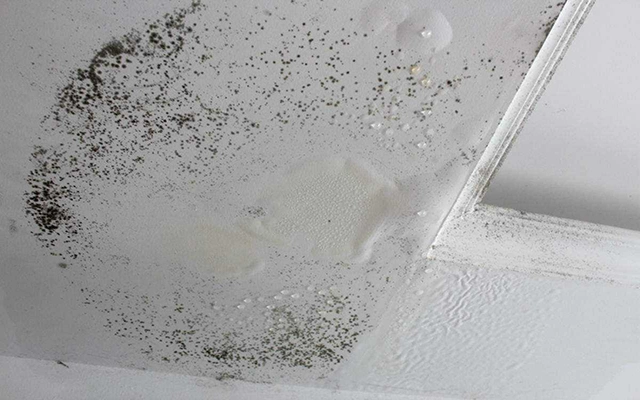

Gypsum board offers decent protection in dry zones. While ‘fire-rated’ gypsum panels exist, they often require multi-layer installation and added materials to match the performance of calcium silicate. In humid conditions, even water-resistant gypsum can slowly degrade, requiring frequent replacements.

calcium silicate board standard: EN-14306

Best Use Cases

Calcium Silicate Board is best for:

  • – Bathrooms, kitchens, laundry rooms
  • – Basements and coastal areas
  • – Commercial buildings and high-traffic zones
  • – Fire-rated walls, ceilings, elevator shafts

Gypsum board is ideal for:

  • Bedrooms, living rooms, and offices
  • – Ceilings and non-load-bearing partitions
  • – Temporary walls or fast renovation projects
  • – Budget-sensitive or DIY-friendly spaces

Cost Breakdown

Calcium silicate board costs about 40–50% more than regular gypsum. It also involves higher labor costs due to installation complexity.

In areas prone to water exposure or requiring fire safety, the investment in silicate boards pays off. You save on future repairs, replacements, and maintenance. According to building studies, calcium silicate can reduce lifetime maintenance costs by over 50% in high-risk areas.

Can I Use Both?

Yes! Many professionals recommend combining both materials based on where they’re used:

  • – Use Calcium Silicate Board in wet, high-load, or fire-prone zones.
  • – Use gypsum board in dry, low-traffic areas where quick installation is a priority.


This approach helps balance budget with long-term reliability.

Final Thoughts

Both calcium silicate board and gypsum board serve important roles in construction. Choosing the right one depends on your project needs, environmental conditions, and long-term expectations.

  • – For maximum durability, fire and water resistance: go with Calcium Silicate Board.
  • – For dry, simple, and cost-conscious installations: Gypsum board works well.


By understanding their differences, you can build safer, longer-lasting, and more efficient spaces.
