Outdoor Wood Grain Decking Board

Create beautiful, economical, and practical sightseeing platforms and garden boardwalks

Product Gallery

Product Overview – Outdoor Wood Grain Decking Board

JOINBLING Siding Fiber Cement Board is a new type of inorganic panel with simulated wood grain on the surface and high impact resistance. It is produced through chemical reactions using cement, plant fibers, and various selected natural minerals as raw materials.

Specifications & Dimensions

Thickness (mm)

Width (mm)

Length (mm)

24  22

200  300

3000

Technical Data of Decking Board

Item

Unit

Index

Density

g/cm³

≥1.4

Anti-skid Value

≥35

Water Absorption

%

≤28

Saturated Bending Strength

Mpa

≥13

Abrasion Resistance

g/100r

≤0.15

Impact Resistance

K J/m³

≥3.5

Combustibility

Non-combustibility Class A

Radioactivity

Meet the requirements

Asbestos Content

Asbestos free

Concentrated Load

≥500kg

Uniform Load

≥800kg/㎡

Other Properties

Meet the requirements of J C / T412.1

Application Scenarios for Decking Boards

The Outdoor Wood Grain Decking Board is suitable for various boardwalks and platforms in tourist attractions, architectural gardens, private gardens, etc.; floor panels of buildings such as office buildings, commercial-residential buildings, and museums; artistic buildings in small structures, parks, and private gardens; and exterior wall enclosures of various buildings.

Standard Sizes & Custom Options Available

Key Features of Outdoor Decking Board

Anti-Slip and Wear-Resistant

The surface of Jinbeilin wood-grain hanging panels replicates the texture of rare natural wood, creating an aesthetically pleasing natural environment while providing anti-slip and wear-resistant properties.

Fireproof and Non-Combustible

As a non-combustible material, it complies with GB8624-2012 standards and achieves Class A1 non-combustibility in tests, ensuring customers can use it with confidence.

Corrosion & Insect Resistance

Made of inorganic materials, it resists insect damage and decay over long-term use, with excellent mold and bacteria resistance.

Weatherproof and Freeze-Resistant

The panels pass freeze-thaw cycle and immersion-drying cycle tests, demonstrating weather resistance, durability, and resistance to deformation, making them suitable for harsh outdoor environments.

Eco-Friendly and Sustainable

The panels are 100% asbestos-free, contain no toxic substances, and release no harmful gases. At the end of their service life, they can be recycled.

Aesthetic and Decorative Appeal

The board features rich textures and is easy to install, suitable for decoration and protection in various outdoor occasions.

Installation Systems

Hidden Buckle Installation

Self-Tapping Screw Fixation

Why Choose Us

Comparison with Similar Products from Peers

Cost-Effectiveness

With full certification for export to European markets, JOINBLING fiber cement boards deliver excellent cost-performance compared to similar brands. They meet international safety and durability standards while providing a reliable, affordable solution tailored to modern construction needs.

Superior Quality

Many counterfeit boards fail to meet basic flexural strength standards. In contrast, JOINBLING boards pass strict curtain wall performance tests, including air tightness, water resistance, wind pressure, and planar deformation. This ensures consistent strength, high density, and minimal warping or structural instability.

High Manufacturing Standards

Compared to low-grade products from asbestos-based or unregulated factories, JOINBLING boards offer superior quality—featuring uniform thickness, minimal surface defects, consistent texture, and stable color performance. These qualities ensure aesthetic consistency and long-term reliability in professional applications.

Generation process

Raw Material Preparation

We carefully select and proportion high-quality raw materials such as plant fibers, cement, silica, and additives. This step ensures the strength of the base layer of the fiber cement board, laying a solid foundation for its durability, dimensional stability, and resistance to harsh environmental conditions.

Mixing Process

All raw materials are mixed into a uniform slurry using an advanced automated system. The precise mixing process ensures uniform fiber distribution and stable composition, which is essential to ensure the consistent performance of each fiber cement board.

Pressurization

The fully mixed slurry is pressed under high pressure to compact the material into a dense and hard board. The pressing process strengthens the structure of the fiber cement board and improves its ability to resist cracking, warping, and long-term wear and tear due to moisture or wind and sun.

Board Maintenance

After pressing, the raw board is moved into a controlled curing environment with strict temperature and humidity settings. This board curing process promotes cement hydration so that each board achieves the best mechanical properties and surface hardness.

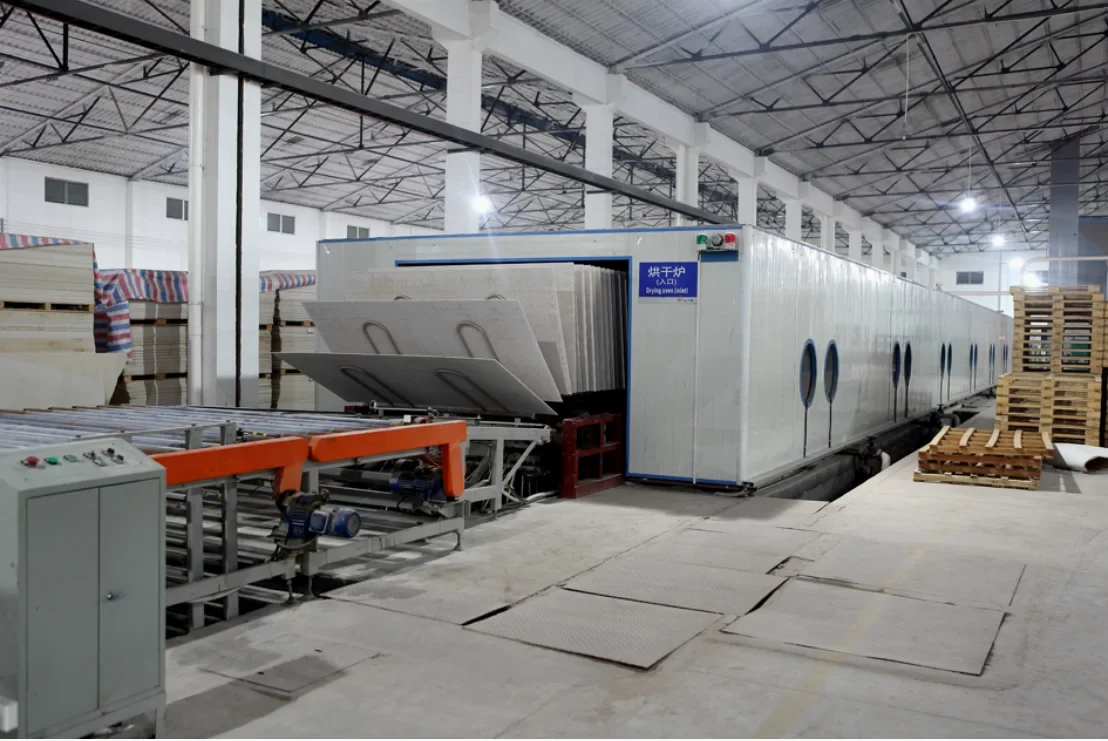

Drying and Unloading Board

Partially cured boards enter the drying room to remove excess moisture. Once dry, it is carefully unloaded and prepared for subsequent processing. This critical step prevents the finished fiber cement board from deforming, mold or internal stress.

Cutting

The dried boards are cut using automated precision cutting machines to form standard or custom sizes. Precise dimensions and smooth edges ensure installation efficiency and meet architectural design standards for fiber cement board applications.

Quality Inspection

Each fiber cement board undergoes a strict quality control process, including size, thickness, strength and appearance inspections. Only boards that meet international standards such as CE or AS/NZS are approved for distribution.

Finished Product Storage

Finished boards are stacked and stored in moisture-proof, organized storage areas. Proper labeling, protective packaging and inventory control ensure that fiber cement boards maintain quality during transportation and can be delivered quickly around the world.



Our Happy Clients!

F.A.Q.

FAQs –About Fiber Cement Outdoor Wood Panels

1. What is the load-bearing capacity of fiber cement boardwalk panels? Can they meet the high foot traffic requirements of scenic spots?

JOINBLING Outdoor Wood Grain Decking Board production indices are tested according to international standards. For different scenarios with dense foot traffic in scenic spots, we recommend contacting our professional technicians to evaluate the panel type and match it with a targeted keel structure to ensure long-term stability and safety.

JOINBLING uses innovative technology to ensure long-term color stability on the surface of the wood grain decking board, and the surface hydrophobic treatment prevents microbial attachment, ensuring no fading or mold growth during long-term use.

JOINBLING’s Outdoor Wood Grain Decking Board has passed cyclic freeze-thaw tests, ensuring the internal fiber structure remains stable with no risk of cracking.

JOINBLING has developed a prefabricated system design for convenient on-site use and installation, supporting modular quick installation. Compared with traditional wooden boardwalks, the construction period is greatly shortened, and ordinary construction teams can operate it.

JOINBLING designed the product to solve customer pain points, with customizable skid-resistant textures on the panel surface. Tests show it still meets pedestrian safety standards in wet and slippery rainy conditions.

JOINBLING adheres to the principle of green development and production. To ensure the safety of customers and construction teams, the wood grain decking board is 100% asbestos-free and formaldehyde-free, and has passed SGS environmental testing and ISO 14001 certification.
