Partition & Ceiling Fiber Cement Board

JOINBLING Fiber Cement Board(Dry Area) is composed of high-quality portland cement, high-purity quartz sand, plant fibers, and other organic/inorganic materials, completely free of asbestos, formaldehyde, and other harmful substances. Manufactured by advanced automated equipment and sophisticated processes, it forms a dense and firm crystal structure through high-temperature autoclaving and special technical treatment—an eco-friendly, safe, and multifunctional premium building panel.

Product Gallery

Product Overview – Partition & Ceiling Board

The Through-Colored Fiber Cement Board is a thin panel made from Portland cement, plant fibers, quartz, and other natural minerals through high-temperature and high-pressure steaming. It is a panel with uniform color, varied styles, excellent strength, and weather resistance.

Specifications & Dimensions

Thickness

Width

Length

6, 7, 8, 9, 10, 12, 15, 18 mm

1220 mm

2440 mm

Note: Custom specifications
available upon request.

Note: Custom specifications
available upon request.

Note: Custom specifications
available upon request.

Physical Properties
The following data are average test results during manufacturing.

Item

Index

Unit

Density

≥1.20

g/cm³

Non-combustibility

Class A1

/

Bending Strength (Oven-dried)

Longitudinal ≥9.0

Mpa



Transverse ≥7.0

Mpa

REMARK: Please contact our technical department
if you need more technical index.



Safety Capabilities

Item

Index

Compliance

Asbestos Content

100% asbestos-free

Safe for use

Radioactivity

<1.0 IRa

Safe for use



<1.0 IRb

Safe for use

Non-combustibility

Class A

Highest grade

Application Scenarios for Partition & Ceiling Boards

  • Transportation Sites: Subways, airports, tunnels
  • Commercial & Residential Buildings: Commercial housing, hotels, office buildings, restaurants, villas, etc.
  • Industrial Buildings: Production workshops, warehouses, gas stations, etc.

Key Features of Partition & Ceiling Board

Excellent Acoustic & Noise Reduction

The board itself has excellent sound insulation performance.

Insect & Termite Resistance

Effectively resists erosion from insects and termites, providing protection against both.

Fireproof & Flame Retardant

Meets the national Class A1 non-combustible standard, with excellent fire resistance performance.

Eco-Friendly & Sustainable

100% asbestos-free, harmless throughout the entire life cycle, and recyclable.

Lightweight & High Strength

High-density, high-strength, and lightweight, reducing building self-weight and featuring good seismic resistance.

Corrosion Resistant Surface

Main materials are cement, quartz sand, and minerals, preventing mildew and microbial growth.

Surface Easy to Paint & Decorate

The surface can be easily coated with paints, wallpapers, ceramic tiles, stone, and other decorative materials.

Long-Term Durability Under Heavy Use

Made of inorganic materials, its performance remains stable after high-temperature autoclaving, with a service life close to that of the building.

Quick & Simple Installation

Universal materials are easy to purchase, and dry construction installation saves both construction time and labor.

Installation System

Self-Tapping Screw Fixation Method

Why Choose Us

Comparison with Similar Products from Peers

Cost-Effectiveness

With full certification for export to European markets, JOINBLING fiber cement boards deliver excellent cost-performance compared to similar brands. They meet international safety and durability standards while providing a reliable, affordable solution tailored to modern construction needs.

Superior Quality

Many counterfeit boards fail to meet basic flexural strength standards. In contrast, JOINBLING boards pass strict curtain wall performance tests, including air tightness, water resistance, wind pressure, and planar deformation. This ensures consistent strength, high density, and minimal warping or structural instability.

High Manufacturing Standards

Compared to low-grade products from asbestos-based or unregulated factories, JOINBLING boards offer superior quality—featuring uniform thickness, minimal surface defects, consistent texture, and stable color performance. These qualities ensure aesthetic consistency and long-term reliability in professional applications.

Generation process

Raw material preparation

We carefully select and proportion high-quality raw materials such as plant fibers, cement, silica, and additives. This step ensures the strength of the base layer of the fiber cement board, laying a solid foundation for its durability, dimensional stability, and resistance to harsh environmental conditions.

Stirring processing

All raw materials are mixed into a uniform slurry using an advanced automated system. The precise mixing process ensures uniform fiber distribution and stable composition, which is essential to ensure the consistent performance of each fiber cement board.

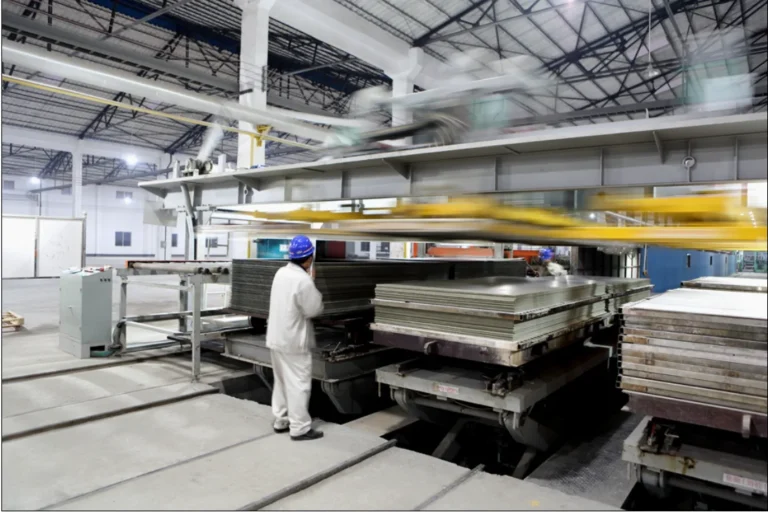

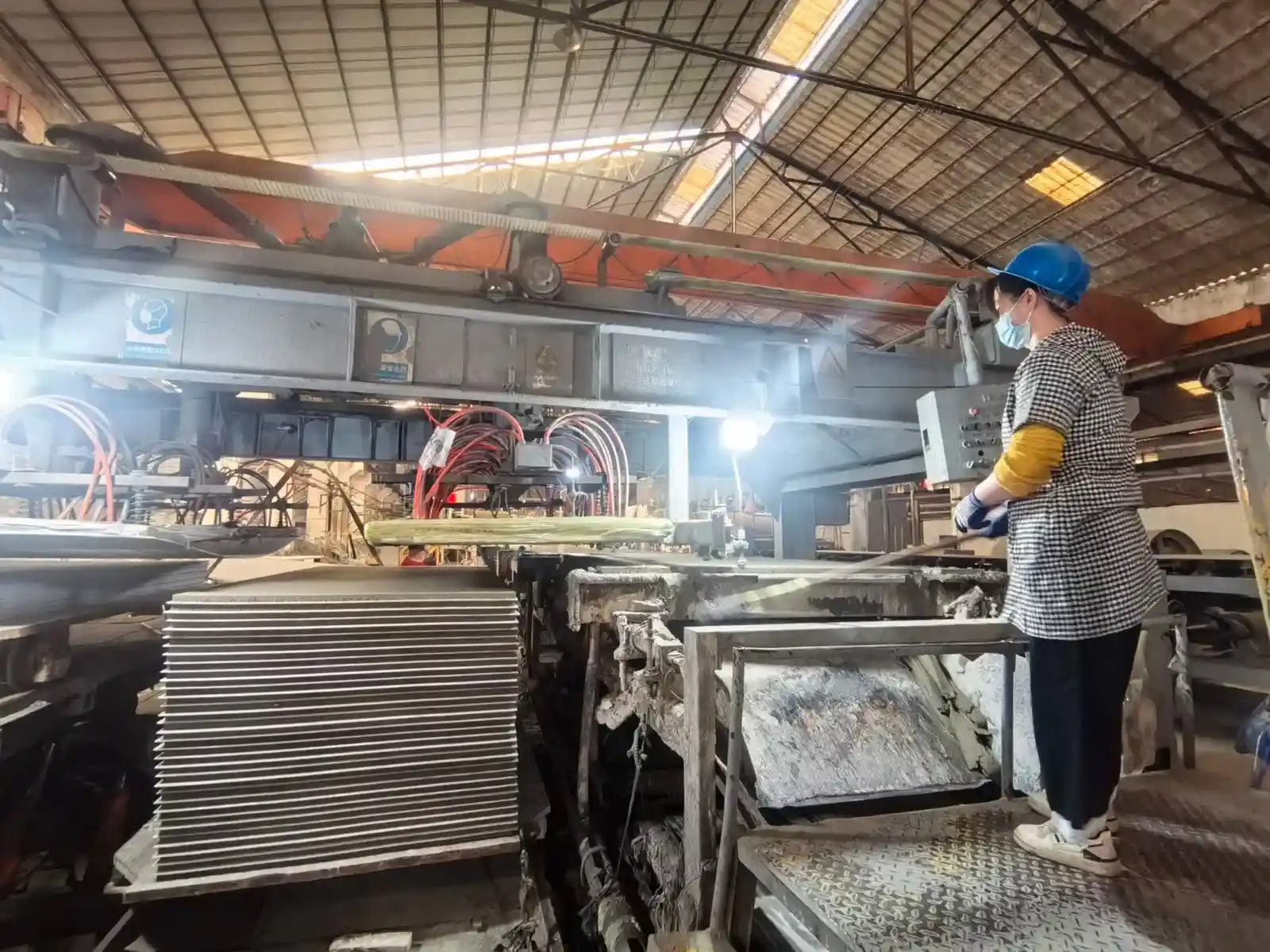

Pressure forming

The fully mixed slurry is pressed under high pressure to compact the material into a dense and hard board. The pressing process strengthens the structure of the fiber cement board and improves its ability to resist cracking, warping, and long-term wear and tear due to moisture or wind and sun.

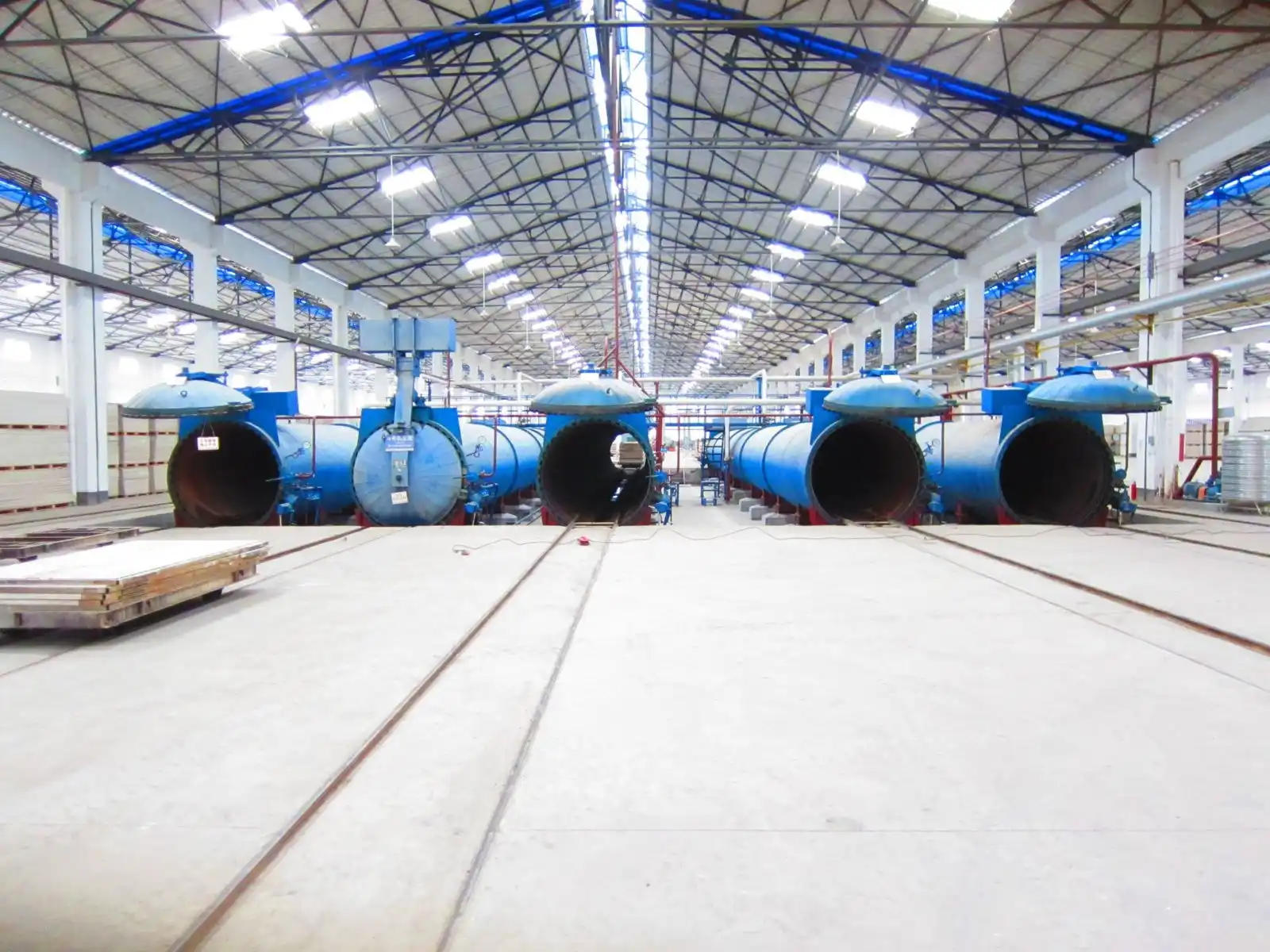

Board Maintenance

After pressing, the raw board is moved into a controlled curing environment with strict temperature and humidity settings. This board curing process promotes cement hydration so that each board achieves the best mechanical properties and surface hardness.

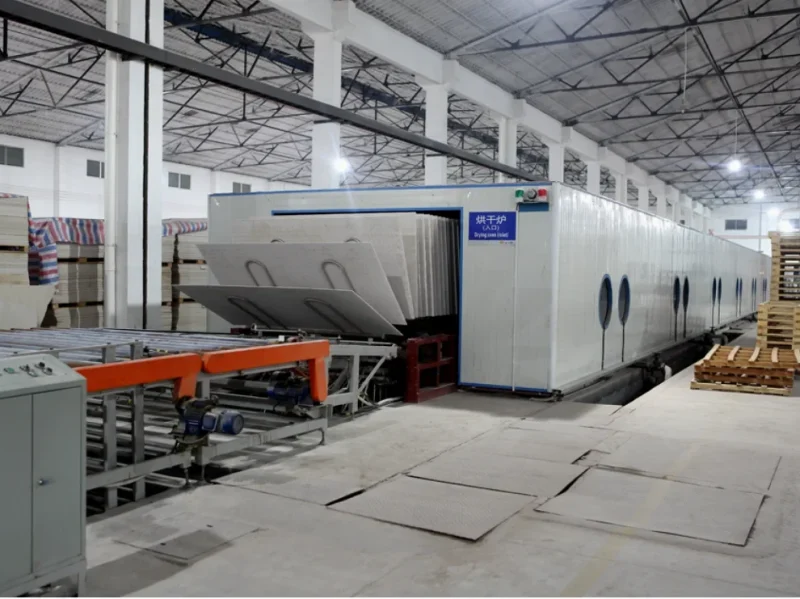

烘干卸板机

Drying

Partially cured boards enter the drying room to remove excess moisture. Once dry, it is carefully unloaded and prepared for subsequent processing. This critical step prevents the finished fiber cement board from deforming, mold or internal stress.

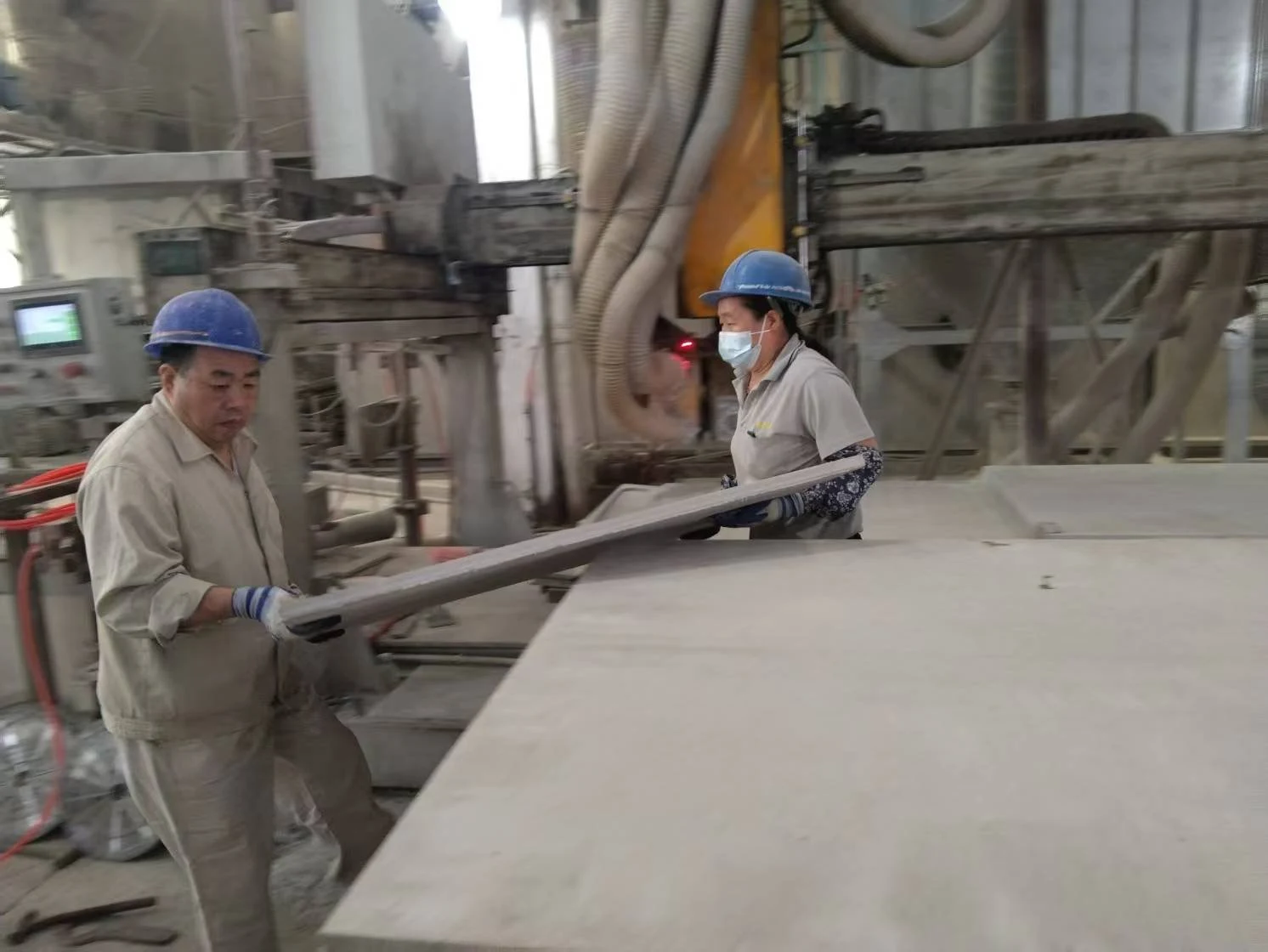

Cutting

The dried boards are cut using automated precision cutting machines to form standard or custom sizes. Precise dimensions and smooth edges ensure installation efficiency and meet architectural design standards for fiber cement board applications.

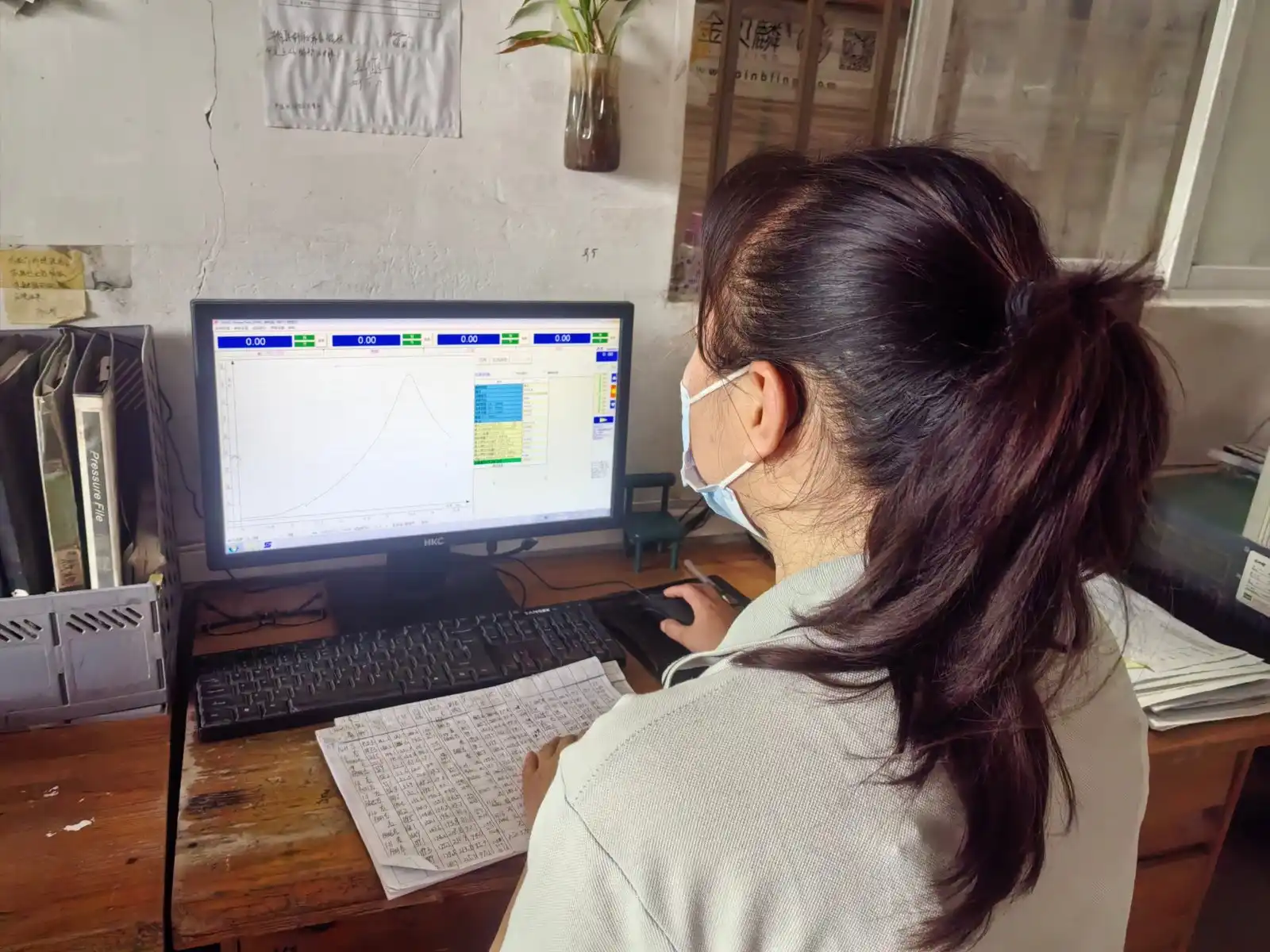

Quality Inspection

Each fiber cement board undergoes a strict quality control process, including size, thickness, strength, and appearance inspections. Only boards that meet international standards such as CE or AS/NZS are approved for distribution.

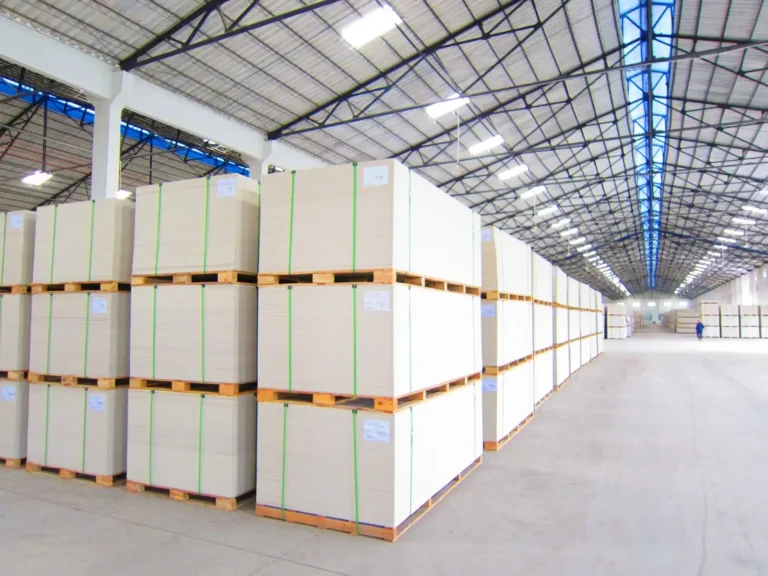

Product storage

Finished boards are stacked and stored in moisture-proof, organized storage areas. Proper labeling, protective packaging, and inventory control ensure that fiber cement boards maintain quality during transportation and can be delivered quickly around the world.

Our Happy Clients!

FAQs—About fiber cement panels for partition walls and ceilings

1. ​​Worried about formaldehyde—Is this board safe?

JOINBLING is committed to customer safety. Fiber Cement Board(Dry Area) is 100% formaldehyde-free and asbestos-free from raw materials to finished products, ensuring physical and mental well-being.

 JOINBLING Fiber Cement Board(Dry Area) uses a dense structure + honeycomb soundproof layer to effectively block human voices and equipment noise. With sound-absorbing cotton, it outperforms brick walls for a quiet, private environment.

Composed of high-quality portland cement, high-purity quartz sand, plant fibers, etc., JOINBLING Fiber Cement Board(Dry Area) boasts rock-solid stability and a service life matching the building, reducing renovation costs.

JOINBLING Fiber Cement Board(Dry Area) has a smooth surface with excellent adhesion, supporting various decorative materials (tiles, wallpapers, artistic paints)—a “versatile canvas” for realizing creative ideas.

JOINBLING Fiber Cement Board(Dry Area) uses non-combustible raw materials, with the board and system meeting non-combustible standards, ensuring reliable fire protection.
