A lightweight, high-density, high-strength, and high-flatness floor slab for building additions
Laying Method: Bracket、Self-tapping Screws
Laying Method: Self-tapping Screws
Raised floor system is a high-strength microporous calcium silicate board processed under high temperature and pressure. It is a lightweight, high-density, high-strength, and high-flatness mezzanine floor slab suitable for office buildings, commercial-residential buildings, and other building additions. Main components include portland cement, natural minerals, and plant fibers. The product is 100% asbestos-free and free of other harmful substances.
| Specification | ||
| Thickness | Width | Length |
| 24mm | 1220mm | 2440mm |
| REMARK: We can also supply other specification as the client’s specially requirement | ||
Physical Properties
| Item | Index | Unit |
| Density | 1.25 | g/cm3 |
| Thermal Conductivity | ≤0.29 | W/(m·k) |
| Bending Strength | 15.58 | Mpa |
| Water Contain | 8.72 | % |
| Moisture Movement | 0.183 | % |
| Thermal Conductivity | 0.155 | w/(m·k) |
| Elasticity Modulus | 6550 | MPa |
| REMARK: Please contact our technical department if you need more technical index. | ||
| Safety Capability | ||
| Item | Index | |
| Asbestos Including | 100% asbestos-free | safe for application |
| Radioactive | <1.0 IRa | safe for application |
| <1.0 Ir | safe for application | |
| noncombustibility | A | the highest grade |

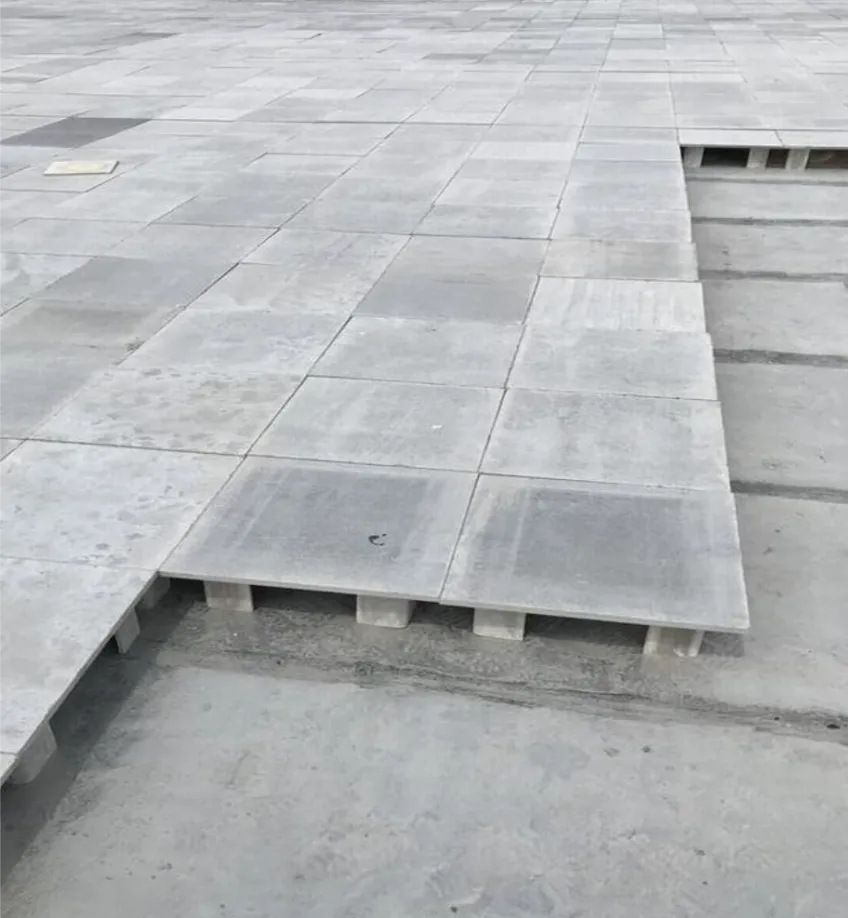

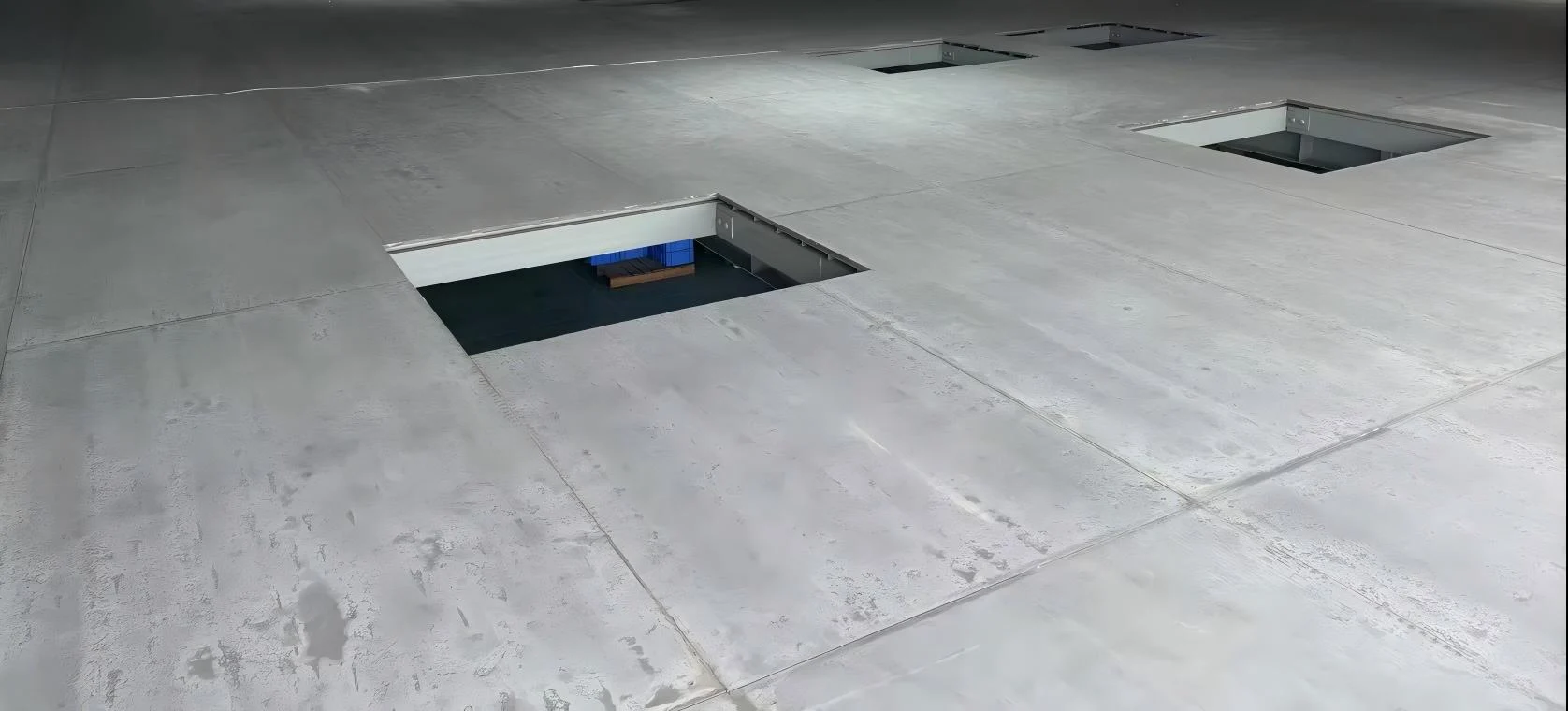

Raised floor system is a lightweight, high-density, high-strength, high-flatness, non-combustible, and non-radioactive inorganic floor slab suitable for:
Contains over 60% components identical to granite and over 20% identical to marble.
Flexural strength: 29MPa parallel to fibers, 212MPa perpendicular to fibers. Strong load-bearing capacity meets national standards and civil building requirements.
Suitable for new and old buildings, eliminating concerns about additional load or structural bearing capacity.
Complies with GB8624-2012 and other domestic/foreign standards, tested to Class A1 non-combustibility, ensuring fire safety.
Adapts to humid areas like bathrooms and kitchens.
Mildew-proof, antibacterial, radiation-free, ensuring environmental protection and health.
Suitable for various scenarios without applicability concerns.
Dry construction method significantly shortens construction time.
Perfectly adapts to floor coatings, floor adhesives, and wooden floor decoration.
Comparison with Similar Products from Peers
With qualifications for exporting to European countries, JOINBLING boards offer higher cost-effectiveness than similar products from competitors while meeting customer needs.
Counterfeit boards on the market often fail to meet the average flexural strength standards. JOINBLING boards have passed the four performance tests for curtain walls (air tightness, water tightness, wind pressure resistance, and planar deformation), ensuring high density and strength with minimal planar deformation.
Inferior products from asbestos factories and other enterprises: JOINBLING boards have uniform thickness, few surface impurities, uniform color, and small color difference.
The JOINBLING Raised Floor System is made of inorganic materials with natural components of granite and marble, featuring structural stability comparable to stone. Under normal use, it requires no maintenance, has a service life far exceeding that of ordinary cement floors, and will not deform or crack after long-term use.
The vertical load-bearing capacity of the JOINBLING Raised Floor System far exceeds conventional requirements. It will not be damaged even when placing heavy objects or under frequent trampling, fully meeting the load-bearing needs of homes, shopping malls, and other venues.
The JOINBLING Raised Floor System has a density only 1/4 that of traditional concrete, weighing as light as 30-40kg/m³. During old building renovations, no structural reinforcement is needed, and it can be directly laid, completely avoiding overload risks. Meanwhile, it supports convenient updates—simply replace the corresponding raised floor panels.
The JOINBLING Raised Floor System has obtained Class A1 certifications under both China’s GB8624 and the UK’s BS476 standards. It does not burn or produce toxic smoke when exposed to an open flame, with safety performance reaching the international top level.
The JOINBLING Raised Floor System supports dry construction, eliminating the need for cement curing. It can be directly cut and laid, saving 50% of the time compared to traditional processes.
The JOINBLING Raised Floor System panels have minimal flatness error upon delivery, allowing direct use as a base layer for laying floors, tiles, or applying floor paint—eliminating traditional leveling procedures and costs. Meanwhile, to address uneven installation positions, the raised floor system is equipped with an up-down adjustment system, helping customers level quickly with simple and convenient operation.
